Bearing Tolerance

The bearings tolerance or dimension accuracy are regulated by "ISO492" standard with:0 Grade;6 Grade ,5 Grade,4 Grade,2 Grade.Class 0 corresponds to normal precision class bearings, and precision becomes progressively higher as the class number becomes smaller; i.e., Class 6 is less precise than Class 5, which is less precise than Class 4, and so on.



The Interchange Table Of Bearings Tolerance Of National Standards UnitUM

BMZ bearing tolerance 1





                                                  Tolerance For Radial Bearings Except Tapered Roller Bearings Inner Ring

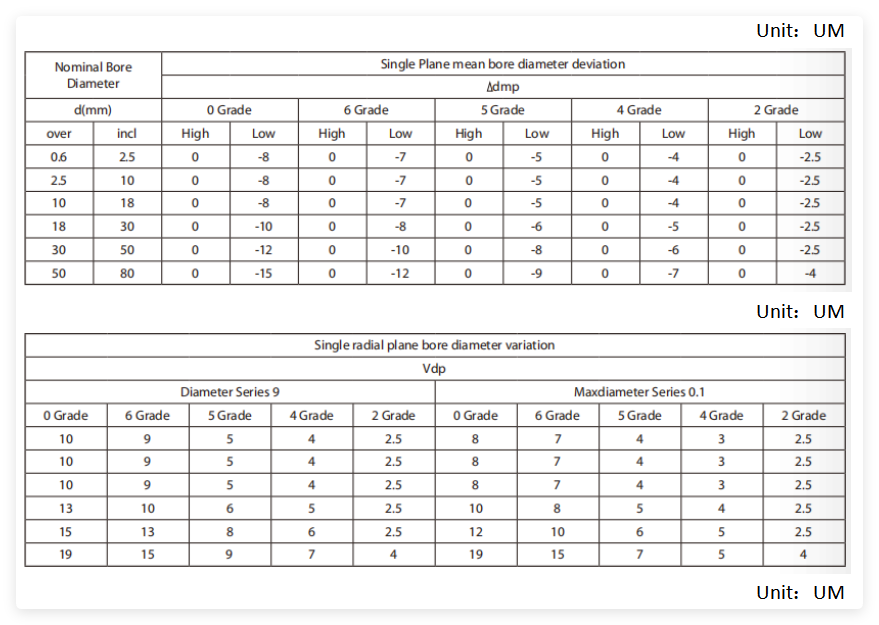

BMZ bearing tolerance 2

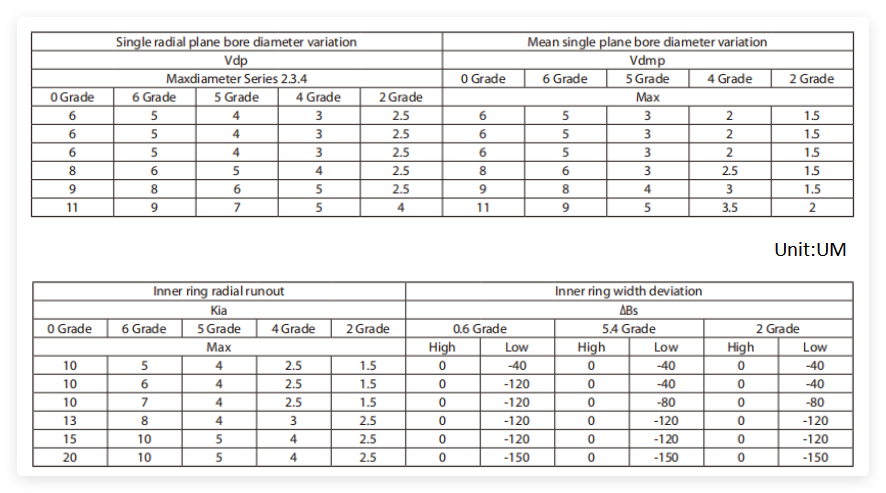

BMZ bearing tolerance 3



Tolerance For Radial Bearings Except Tapered Roller Bearings Outer Ring    UnitUM

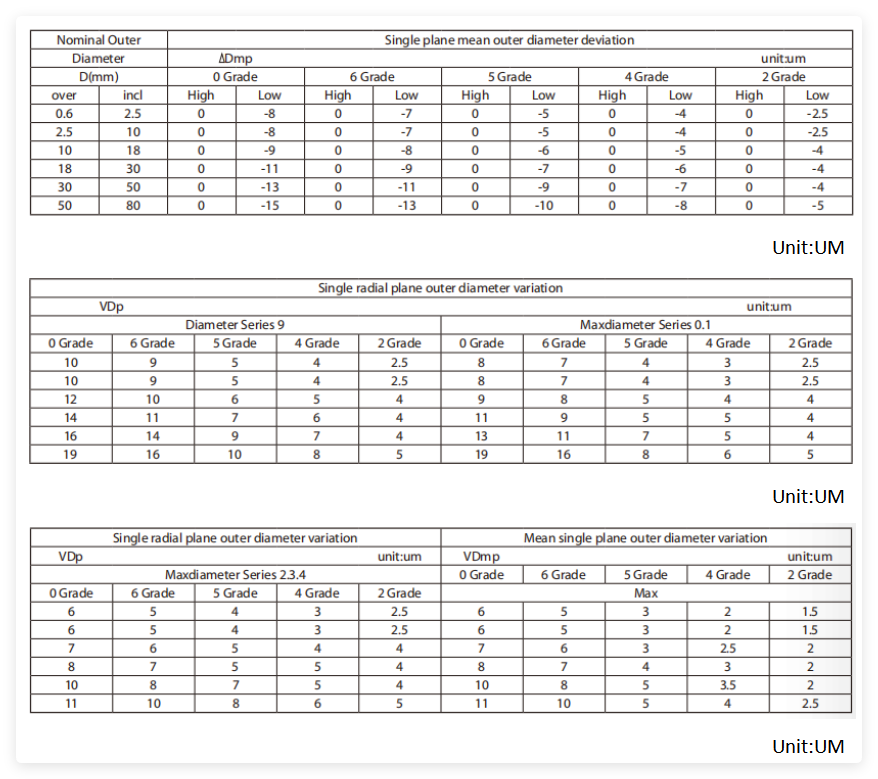

                                    BMZ bearing tolerance 4

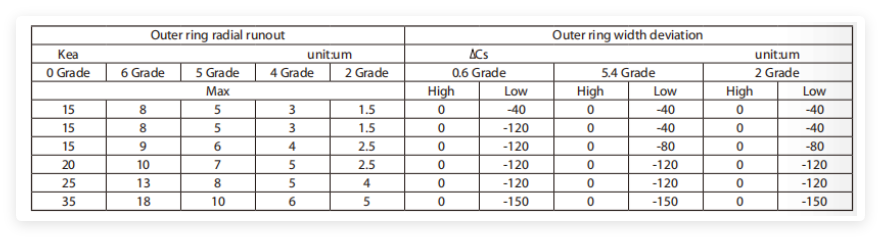

BMZ bearing tolerance 5
