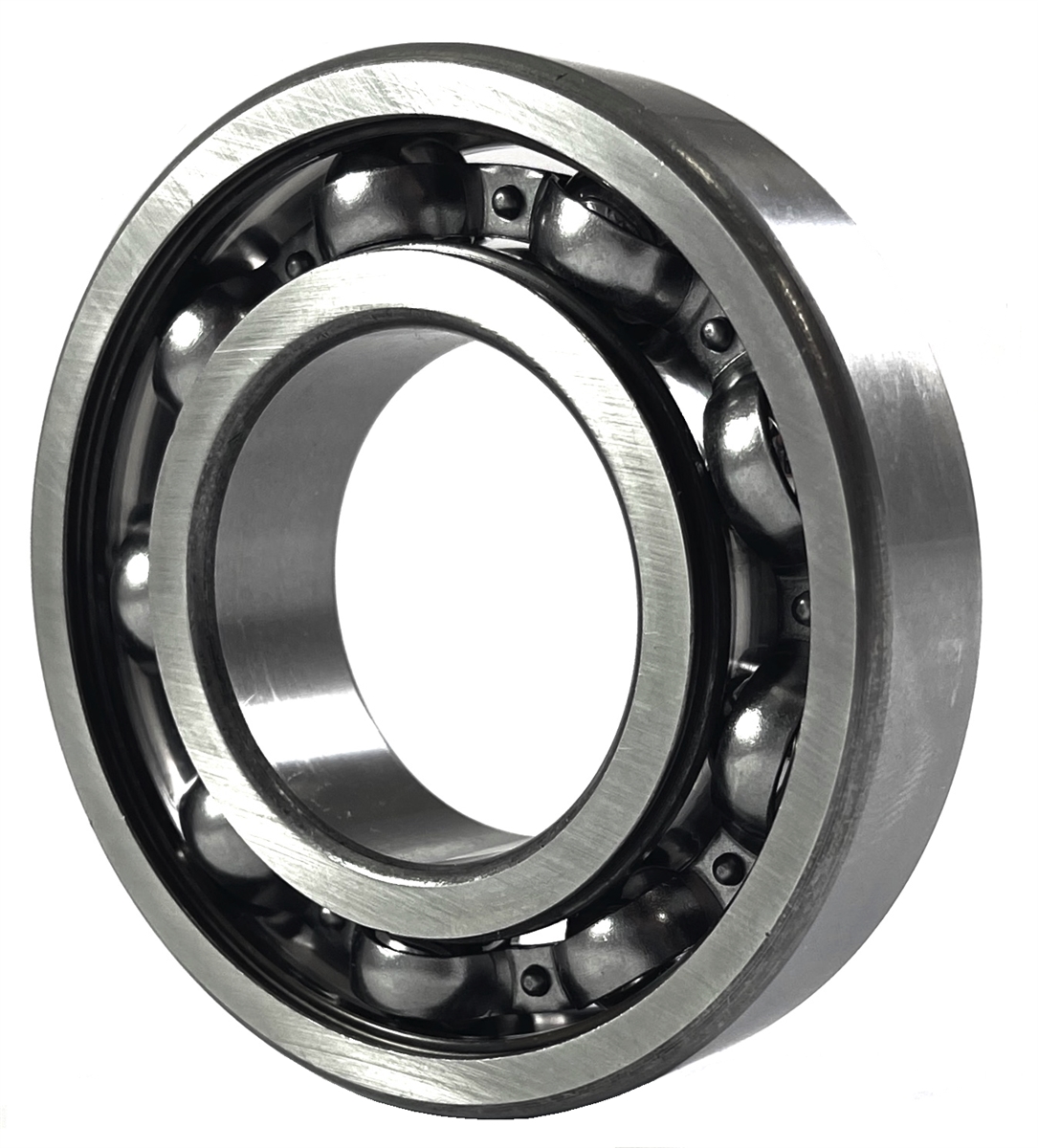

Design Features of 6000 Series Ball Bearing
This Bearing is constructed with a single row of balls, a deep groove raceway in the outer ring, and is known for its robustness and durability. It can offer a highly adaptable and efficient solution for a multitude of mechanical applications.
What Benefits Can This Bearing Provide?
High load-carrying capacity: It can support heavier radial loads compared to other types of ball bearings.
Versatility: Capable of handling both radial and axial loads simultaneously.
Low friction: It’s designed to operate with minimal friction, making them ideal for high-speed applications.
Simplified maintenance: Typically require less maintenance compared to other types of bearings, making it ideal for set-and-forget operations.
What Can This Bearing Be Used for?
The Bearing is suitable for a wide range of applications due to its design and load handling capabilities, such as:
Electric Motors: Commonly used in both industrial and smaller, household motors.
Automotive: Often found in car transmissions, clutch systems, and wheel hubs.
Industrial Machinery: Used in a variety of machines including conveyors, pumps, and compressors.
Home Appliances: Found in washers, dryers, and other household equipment.
| Inquiry | Type | Bore | Outer | Width | Width | Radius | Load Rating(N) | Max speed | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Diameter | B | B1 | rs（min） | Dynamic | Static | Grease | Oil | ||
| d （mm） | D（mm） | mm | mm | （mm） | Cr | Cor | *1000RPM | *1000RPM | ||
| 6010 | 50 | 80 | 16 | 16 | 1.50 | 18510 | 13260 | 8.40 | 9.90 | |
| 6009 | 45 | 75 | 16 | 16 | 1.50 | 15150 | 9660 | 9.20 | 11 | |
| 6008 | 40 | 68 | 15 | 15 | 1.10 | 14250 | 9220 | 10 | 12 | |
| 6007 | 35 | 62 | 14 | 14 | 1.10 | 13560 | 8250 | 11 | 13 | |
| 6006 | 30 | 55 | 13 | 13 | 1.10 | 11240 | 6610 | 13 | 15 | |
| 6005 | 25 | 47 | 12 | 12 | 1 | 8550 | 4690 | 15 | 18 | |
| 6004 | 20 | 42 | 12 | 12 | 0.60 | 7960 | 4050 | 17 | 21 | |
| 6002 | 15 | 32 | 9 | 9 | 0.30 | 4750 | 2270 | 23 | 27 | |
| 6003 | 17 | 35 | 10 | 10 | 0.30 | 5090 | 2630 | 21 | 25 | |
| 6001 | 12 | 28 | 8 | 8 | 0.30 | 4340 | 1910 | 27 | 32 | |
| 6000 | 10 | 26 | 8 | 8 | 0.30 | 3860 | 1570 | 31 | 36 | |
| 609 | 9 | 24 | 7 | 7 | 0.30 | 3356 | 1444 | 32 | 38 | |
| 608 | 8 | 22 | 7 | 7 | 0.30 | 3293 | 1379 | 34 | 40 | |
| 607 | 7 | 19 | 6 | 6 | 0.30 | 2336 | 896 | 36 | 43 | |
| 606 | 6 | 17 | 6 | 6 | 0.30 | 2263 | 846 | 38 | 45 | |
| 605 | 5 | 14 | 5 | 5 | 0.20 | 1329 | 507 | 40 | 50 | |
