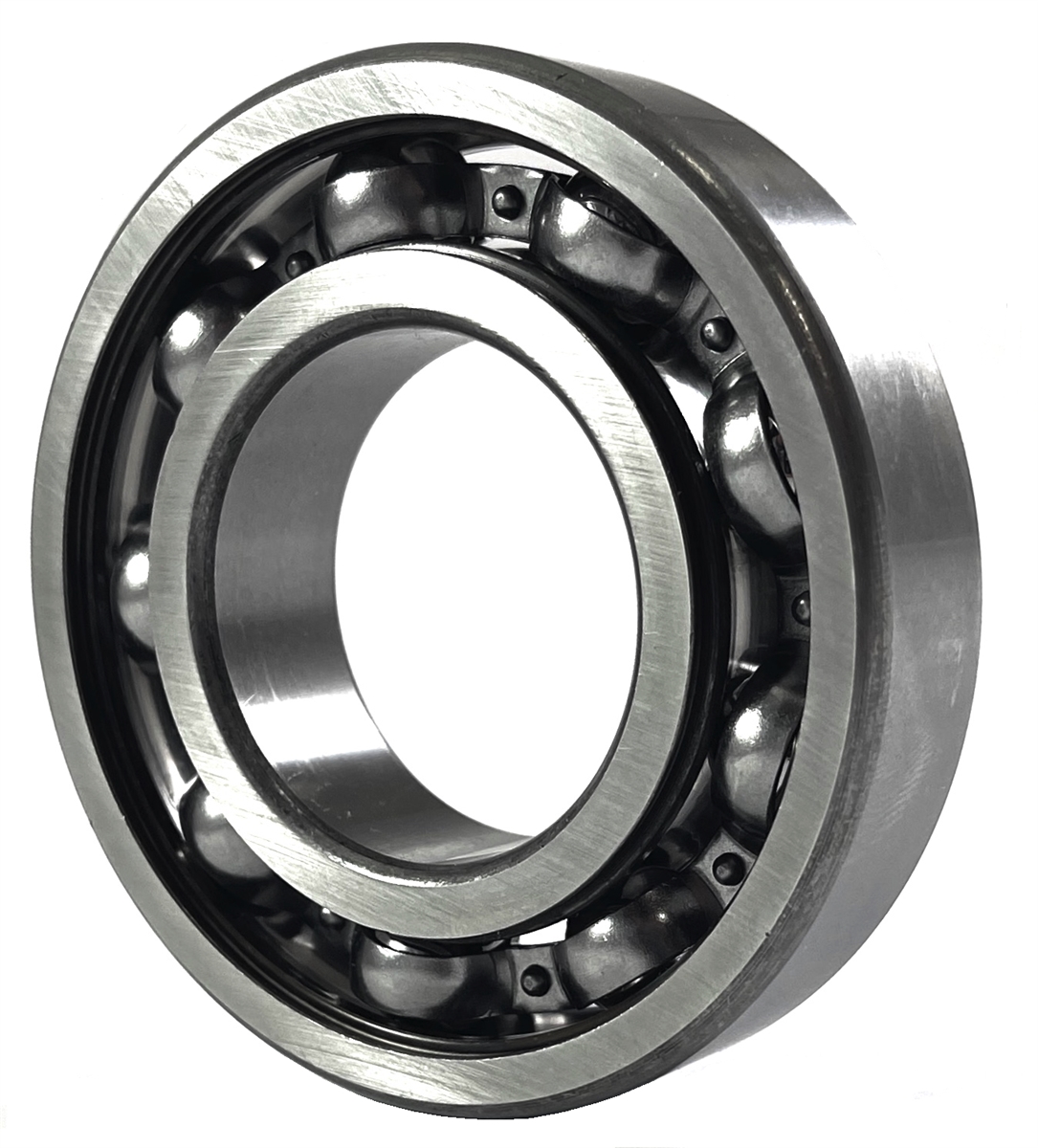

Design Features of 6300 Series Bearing:
This Bearing is constructed with a single row of balls, a deep groove raceway in the outer ring, and is known for its robustness and durability. It can offer a highly adaptable and efficient solution for a multitude of mechanical applications.
What Benefits Can This Bearing Provide?
High load-carrying capacity: It can support heavier radial loads compared to other types of ball bearings.
Versatility: Capable of handling both radial and axial loads simultaneously.
Low friction: It’s designed to operate with minimal friction, making them ideal for high-speed applications.
Simplified maintenance: Typically require less maintenance compared to other types of bearings, making it ideal for set-and-forget operations.
What Can This Bearing Be Used for?
The Bearing is suitable for a wide range of applications due to its design and load handling capabilities, such as:
Electric Motors: Commonly used in both industrial and smaller, household motors.
Automotive: Often found in car transmissions, clutch systems, and wheel hubs.
Industrial Machinery: Used in a variety of machines including conveyors, pumps, and compressors.
Home Appliances: Found in washers, dryers, and other household equipment.
| Inquiry | Type | Bore | Outer | Width | Width | Radius | Load Rating(N) | Max speed | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Diameter | B | B1 | rs（min） | Dynamic | Static | Grease | Oil | ||
| d （mm） | D（mm） | mm | mm | （mm） | Cr | Cor | *1000RPM | *1000RPM | ||
| 6310 | 50 | 110 | 27 | 27 | 3 | 62000 | 38000 | 6.40 | 7.70 | |
| 6309 | 45 | 100 | 25 | 25 | 2.50 | 53000 | 32000 | 7 | 8.10 | |
| 6308 | 40 | 90 | 23 | 23 | 2.50 | 40500 | 24100 | 7.80 | 9 | |
| 6307 | 35 | 80 | 21 | 21 | 2.50 | 28290 | 15270 | 8.50 | 10 | |
| 6306 | 30 | 72 | 19 | 19 | 2 | 22630 | 12080 | 9.60 | 12 | |
| 6305 | 25 | 62 | 17 | 17 | 2 | 17490 | 9060 | 11 | 13 | |
| 6304 | 20 | 52 | 15 | 15 | 2 | 13490 | 6310 | 14 | 17 | |
| 6303 | 17 | 47 | 14 | 14 | 1.50 | 11550 | 5330 | 15 | 18 | |
| 6302 | 15 | 42 | 13 | 13 | 1 | 9710 | 4370 | 17 | 20 | |
| 6301 | 12 | 37 | 12 | 12 | 1 | 8240 | 3360 | 20 | 25 | |
| 6300 | 10 | 35 | 11 | 11 | 0.60 | 6870 | 2750 | 22 | 27 | |
| 639 | 9 | 28 | 10 | 10 | 0.30 | 4659 | 2080 | 24 | 30 | |
| 638 | 8 | 28 | 9 | 9 | 0.30 | 4563 | 1983 | 28 | 34 | |
| 637 | 7 | 26 | 9 | 9 | 0.30 | 4563 | 1983 | 28 | 34 | |
| 636 | 6 | 22 | 6 | 6 | 0.30 | 3333 | 1423 | 30 | 36 | |
| 635 | 5 | 19 | 6 | 6 | 0.30 | 2336 | 896 | 32 | 40 | |
| 634 | 4 | 16 | 5 | 5 | 0.30 | 1340 | 523 | 36 | 43 | |
