R1-5*-Miniature Inch Series

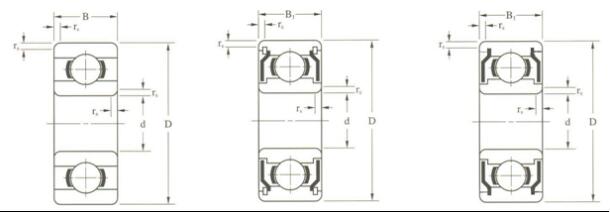

Dimension and Parameters
Product Number
Open
:R1-5*
Shield
:R1-5 ZZ*
Sealed
:
Outer
Diameter
D(mm) :7.94
Width
B
mm :2.78
Width
B1
mm :3.57
Radius
rs(min)
mm :0.15
Load Rating(N)
Dynamic
(mm) :582
Static
Cor :176
Max Speed
Grease
*1000RPM :60
Oil
*1000RPM :71
Cage type
:W
Ball Complement
QTY
Z :6
Size
Dw :1.59
