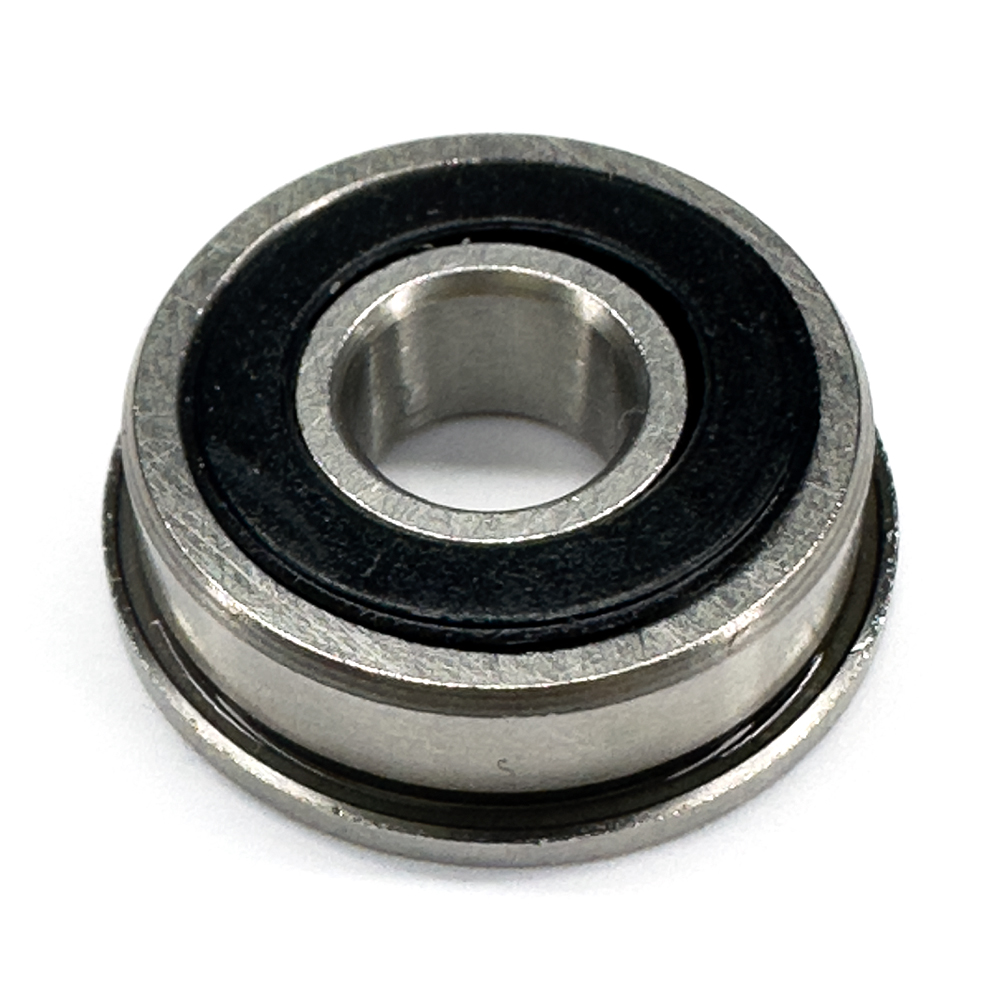

The MF106 is a metric, flanged, deep-groove ball bearing with a compact 6mm bore, 10mm outer diameter, and 2.5mm width (flange OD: 11.2mm) . This design supports moderate radial loads, with a dynamic load rating of 495 N and a static load rating of 218 N . It is suited for high-speed operation, capable of up to 45,000 rpm (grease) or 53,000 rpm (oil) . The integral flange simplifies mounting and positioning in compact machinery, small motors, and precision instruments .
