Flanged Ball Bearing-Metric Flange Series

Send Inquiry

Design Features of This Metric Flanged Bearing:

Flanged Bearing is designed to effectively handle radial loads, provide precise alignment and facilitate easy mounting in applications where axial positioning is essential.. Its robust construction and flange design can offer reliable performance and extended service life.

What Benefits Can This Flanged Bearing Provide?

Precise Axial Positioning: The integrated flange aids in securing the bearing axially, ensuring optimal alignment.

Simplified Installation: The flange allows for easier bearing assembly and disassembly, reducing maintenance time.

Enhanced Durability: This bearing typically has robust construction for prolonged service life, even in demanding applications.

Reduced Friction: Their design aids in lowering friction, promoting energy efficiency.

What Can This Flanged Bearing Be Used for?

This Flanged Bearing is suitable for a wide range of applications due to their design and load handling capabilities, including:

Automotive: used in assemblies like transmissions, steering mechanisms, and wheel hubs

Industrial Machinery: such as conveyor systems, electric motors, and various mechanical handling systems

Home Appliances: such as washing machines, air conditioners, and refrigerators

Aerospace: used in aircraft control systems and satellite equipment

Electronics: like hard drives and DVD players

Robotics: used in robotic arms and automated machinery

Inquiry	Type	Bore	Outer	Width	Width	Radius	Flange	Flange	Flange	Load Rating(N)		Max Speed
		Diameter	Diameter	B	B1	rs(min)	Diameter	Width	Width	Dynamic	Static	Grease	Oil
		d(mm)	D(mm)	mm	mm	mm	Df	Bf	Bf1	(mm)	Cor	*1000RPM	*1000RPM
	F602X	2.50	8	2.80	4	0.15	9.50	0.70	0.90	552	177	60	71
	F692X	2.50	7	2.50	3.50	0.15	8.50	0.70	0.90	386	129	63	75
	F682X	2.50	6	1.80	2.60	0.08	7.10	0.50	0.80	209	74	71	80
	F602	2	7	2.80	3.50	0.15	8.50	0.70	0.90	386	129	60	71
	MF62	2	6	2.50	2.60	0.15	7.20	0.60	0.60	330	99	75	90
	F692	2	6	2.30	3	0.15	7.50	0.60	0.80	330	99	75	90
	MF52	2	5	2	2.50	0.10	6.20	0.60	0.60	169	50	85	100

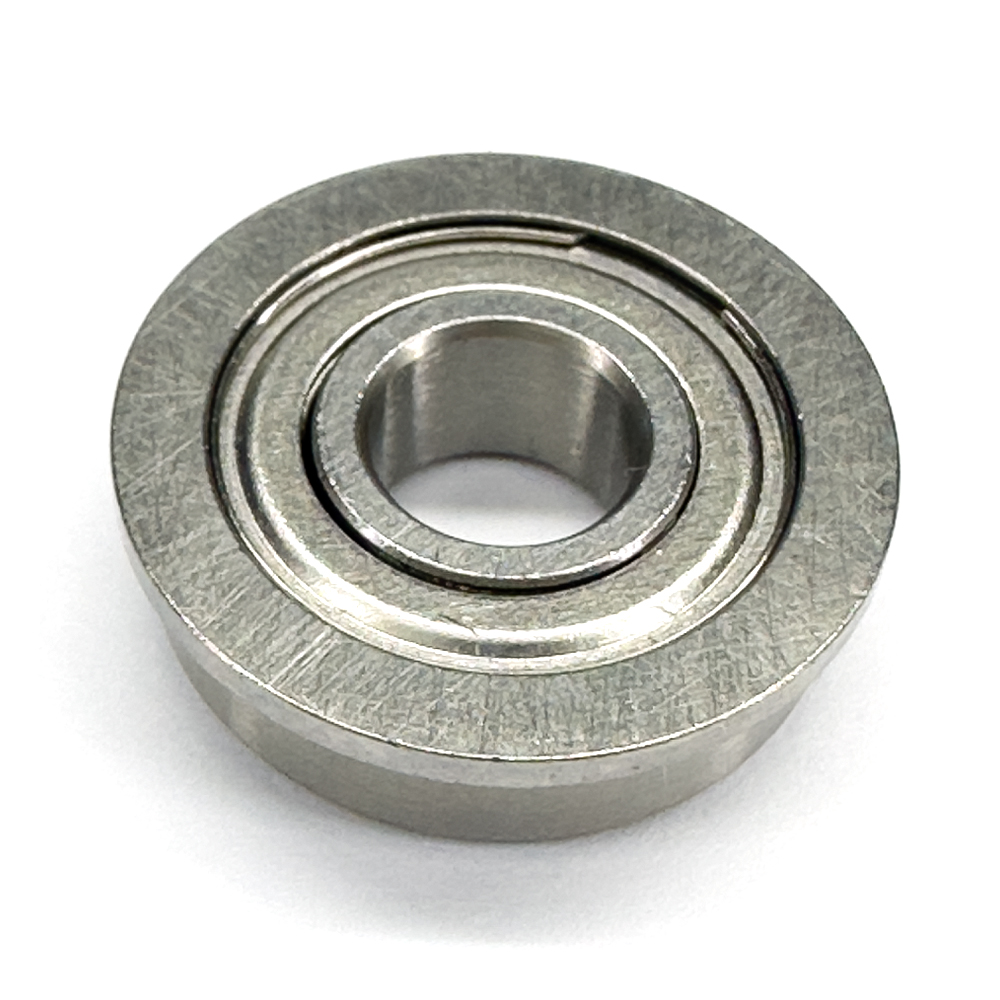

	F682	2	5	1.50	2.30	0.08	6.10	0.50	0.60	169	50	85	100
	F681X	1.50	4	1.20	2	0.05	5	0.40	0.60	112	33	100	120
	F6903	17	30	7	7	0.30	32.50	1.50	1.50	4588	2565	23	38
	F6902	15	28	7	7	0.30	30.50	1.50	1.50	4321	2259	26	30
	F6901	12	24	6	6	0.30	26.50	1.50	1.50	2886	1466	31	36
	F6802	15	24	5	5	0.30	26	1.10	1.10	2073	1253	28	33
	MF63	3	6	2	2.50	0.10	7.20	0.60	0.60	209	74	71	80
	F683	3	7	2	3	0.10	8.10	0.50	0.80	311	112	63	75
	MF83	3	8	2.50	3	0.15	9.20	0.60	0.30	395	141	60	67
	F693	3	8	3	4	0.15	9.50	0.70	0.90	558	180	60	67
	MF93	3	9	2.50	4	0.20	10.20	0.60	0.80	571	189	56	67
	F623	3	10	4	4	0.15	11.50	1	1	631	219	50	60
	MF74	4	7	2	2.50	0.10	8.20	0.60	0.60	311	115	60	67
	MF84	4	8	2	3	0.15	9.20	0.60	0.60	395	141	56	67
	684	4	9	2.50	4	0.10	10.30	0.60	1	641	227	53	63
	MF104	4	10	3	4	0.20	11.20	0.60	0.80	711	272	48	56
	F694	4	11	4	4	0.15	12.50	1	1	957	350	48	56
	F604	4	12	4	4	0.20	13.50	1	1	957	350	48	56
	F624	4	13	5	5	0.30	15	1	1	1301	488	40	48
	F634	4	16	5	5	0.30	18	1	1	1340	523	36	43
	MF85	5	8	2	2.50	0.10	9.20	0.60	0.60	308	120	53	63
	MF95	5	9	2.50	3	0.15	10.20	0.60	0.60	431	169	50	60
	MF105	5	10	3	4	0.15	11.20	0.60	0.80	431	169	50	60
